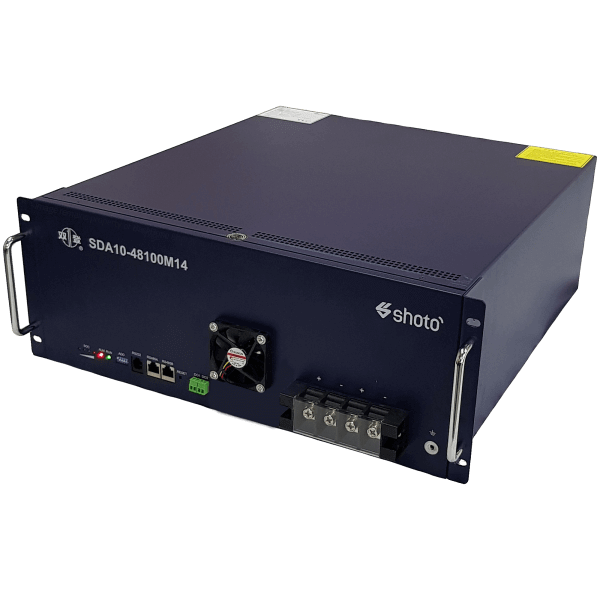

SHOTO Lithium-Ion Battery

The SDA10-4800 series uses new LiFePO4 technology, this reliable SHOTO product is safe, durable and easy to install in any new or existing telecom sites; especially suitable for outdoor cabinets.

Key advantages:

High energy density: more energy with less weight and footprint.

High charge currents (short charge period)

High discharge currents

Long battery life (up to three times the battery life of a conventional battery)

High efficiency between charging and discharging

Higher continual power available

Wide operating temperature

Other functions (optional): Anti-Thief / LCD / Dry Contact

Shoto 5.12kwh Lithium-Ion Battery with more than 5000 cycles with 90% DOD and 10+ years design life.

5.12kwh Lithium-Ion Battery.Model: 51.2-100.
Nominal Capacity (kWh): 5.12.
Depth of Charge: 90%.
Usable Capacity (kWh): 4.6.
Cycle Life: ≥5000 @25 Cº.
Charge Voltage (V): 57.6.
Discharge Voltage (V): 48.
Nominal Voltage (V): 51.2.
Max Parallel Quantity (Pcs): 16.
Charge/Discharge Current (A): Recommend 50 (0.5C) Max 100 (1C).
Communication Port: RS485 & CAN.
Weight (Kg): 43.
Dimensions (W*H*D) mm: 442*133*420.
Certificate:
TUV(IEC 62619)/CE-EMC/UN38.3.

SHOTO FEATURES:

  1. The temperature in the cabinet should be in the range of 15 to 35 degree Celsius. The cumulative duration of the battery temperature in the range of 35 to 45 degree Celsius must not exceed 100 hours per year.
  2. The battery can be used for floating or cyclic scenarios, and the cycles number shall not more than 700 times per year.
  3. Parameters not claimed here shall be set in accordance with requirements of User Manual and Product Specification of SHOTO.
  4. The battery should be recharged within 48 hours after each discharge. For a fully discharged battery, if it is not be recharged for more than 72 hours, it will shorten the battery service life, so we will not provide a warranty if this case happens more than 3 times.
  5. SHOTO would replace the battery during warranty period based on faulty block but not as whole string.
  6. SHOTO should not be held responsible for any physical damage, improper installation, handling and damage caused by any disaster.
  7. SHOTO guarantees that the battery remaining capacity is more than 60% its rated capacity within the warranty period.
  8. SHOTO suggests that user should keep and provide the following monthly logs if possible:
    • Number of cycles, duration of each time, the end voltage of discharge, and other recorded data.
    • Ambient and battery surface temperature.
    • The data that buyer thinks is necessary.
  9. Any storage and maintenance of this battery should refer to SHOTO’s User Manual.
  10. The warranty period starts from the date of delivery from factory. This date can be read from the battery’s serial number.
  11. Shoto 5.12kwh Lithium-Ion Battery with more than 5000 cycles with 90% DOD and 10+ years design life.
  12. 5.12kwh Lithium-Ion Battery.Model: 51.2-100.
    Nominal Capacity (kWh): 5.12.
    Depth of Charge: 90%.
    Usable Capacity (kWh): 4.6.
    Cycle Life: ≥5000 @25 Cº.
    Charge Voltage (V): 57.6.
    Discharge Voltage (V): 48.
    Nominal Voltage (V): 51.2.
    Max Parallel Quantity (Pcs): 16.
    Charge/Discharge Current (A): Recommend 50 (0.5C) Max 100 (1C).
    Communication Port: RS485 & CAN.
    Weight (Kg): 43.
    Dimensions (W*H*D) mm: 442*133*420.
    Certificate:
    TUV(IEC 62619)/CE-EMC/UN38.3.
  13. Shoto 5.12kwh Lithium-Ion Battery with more than 5000 cycles with 90% DOD and 10+ years design life.
  14. 5.12kwh Lithium-Ion Battery.Model: 51.2-100.
    Nominal Capacity (kWh): 5.12.
    Depth of Charge: 90%.
    Usable Capacity (kWh): 4.6.
    Cycle Life: ≥5000 @25 Cº.
    Charge Voltage (V): 57.6.
    Discharge Voltage (V): 48.
    Nominal Voltage (V): 51.2.
    Max Parallel Quantity (Pcs): 16.
    Charge/Discharge Current (A): Recommend 50 (0.5C) Max 100 (1C).
    Communication Port: RS485 & CAN.
    Weight (Kg): 43.
    Dimensions (W*H*D) mm: 442*133*420.
    Certificate:
    TUV(IEC 62619)/CE-EMC/UN38.3.
FREEDOM WON

Long-life high-performance energy storage

Freedom Won’s LiTE technology incorporates the highest quality LiFePO4 cells with advance battery management system. and protection features, ensuring an ultra-safe battery with high power capabilities.

Compact, integrated and attractive

LiTE batteries are packaged in a high-quality compact and attractive aluminium enclosure with integrated heavy-duty protection circuit breaker, state of charge display and power cables, allowing for quick and easy installation and safety peace of mind.

The advanced BMS allows for hassle free plug and play commissioning with most inverter brands. Extensive size/capacity options allow the designer to select one unit to satisfy the storage capacity needs for the system thus simplifying installation, commissioning, and resulting in a compact, safer, neater solution.

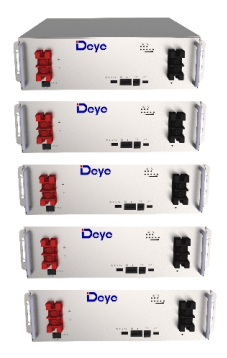

DEYE - Low Voltage Series (LV) / SE-G5.1 PRO (LV)

SaferCobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density.
Intelligent BMS, providing complete protection.

ReliableSupport high discharge power. IP65, natural cooling, wide temperature range: -20
℃ to 55℃.

FlexibleModular design, easy to expand, Max.
64 units in parallel, Max. capacity of 327kWh.Suited to residential and commercial applications for increasing the self-consumption ratio.

ConvenientBattery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.

Eco-FriendlyUse environmental protection materials, the whole module non-toxic, pollution-free.

This series lithium iron phosphate battery is one of new energy storage products developed and produced by Deye, it can be used to support reliable power for various types of equipment and systems. This series is especially suitable for application scene of high power, limited installation space, restricted loadbearing and long cycle life. This se ries battery has built-in BMS (Battery Management System), which can manage and monitor cells information including voltage, current and temperature. What’s more, BMS can balance cells charging to extend cycle life. Multiple batteries can connect in parallel for larger capacity and longer power supporting duration requirements.
